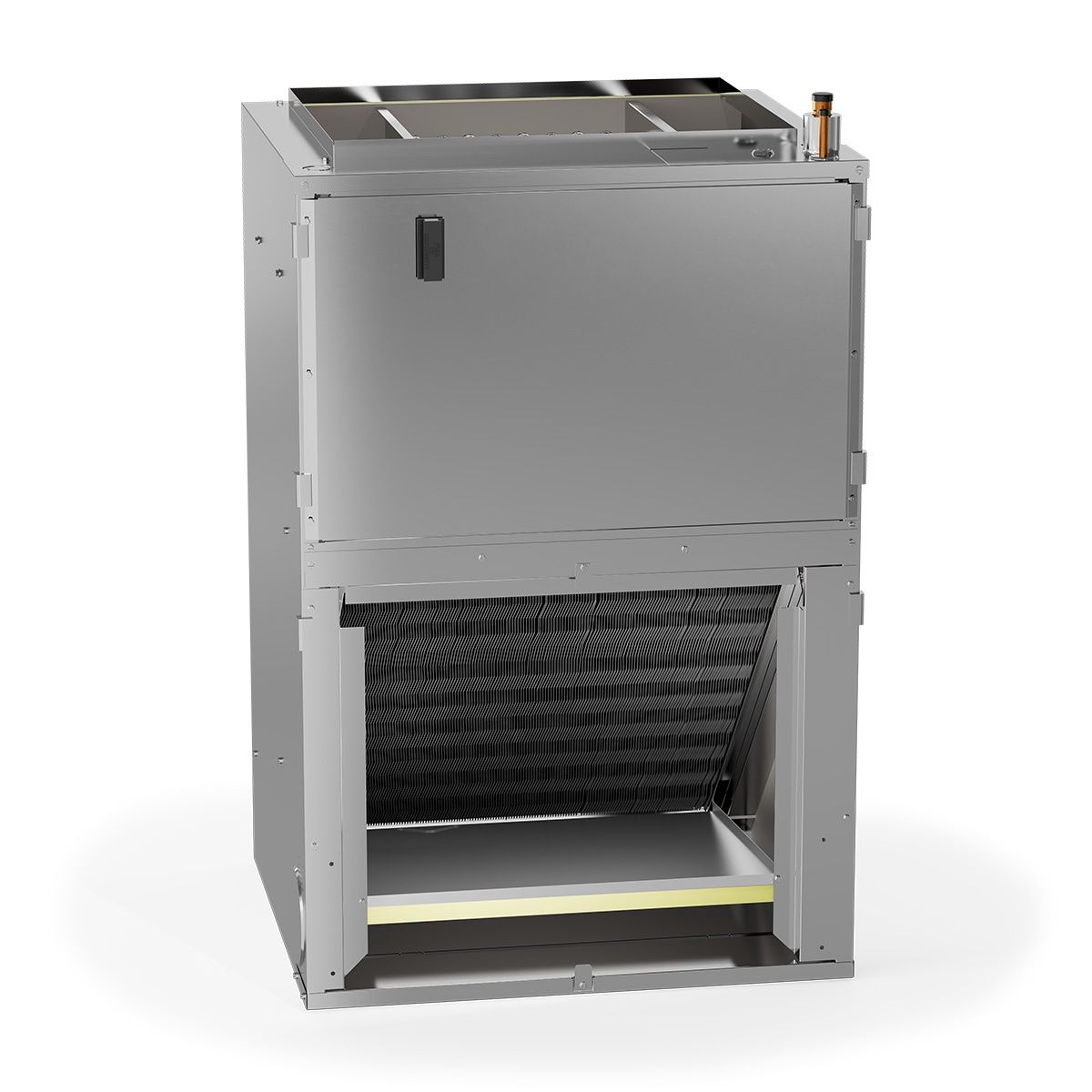

Name: 2.5 Front Return A/H AWST30SU1305
Brand: Goodman
SKU: 10448
Price: 898.3 USD
Availability: PreOrder

2.5 Front Return A/H AWST30SU1305

$898.30

Pre-order

Out of stock, available for pre-order

Product Details

Brand: Goodman

Indoor Blower FLA3.8 A
Max Voltage253 V
Min. Voltage197 V
Power Voltage208/230 V
Min. Circuit Amps26.4/29.8
Power Phase1 Ph
Power Frequency60 Hz
Dimensions - (Unit Depth)21 in
Dimensions - (Unit Width)24 in
Dimensions - (Unit Height)36 in
Weight - (Unit)109 lb
Refrigerant TypeR-32
Motor Speed TypeMulti-Speed
Proposition 65 Label
Cooling Capacity - (Nominal)30000 Btu/H
Country of OriginMexico
Evap Motor RPM1200 r/min
Pallet Qty4
Pipe Size Gas3/4 in
Pipe Size Liquid3/8 in
Tonnage Range2.5
Universal Product Code (UPC)663051683686

AWST Models:

Equipped wit a fully adjustable TXV
Direct-drive, multi-speed motors allows air volume variation for heating/cooling
Direct-drive, multi-speed motors allows air volume variation for heating/cooling
Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
Aluminum tubing coils on all models
Factory-installed pull-type disconnect
Thermoplastic drain pan with bottom primary and secondary drain connections
AHRI Certified and ETL Listed
Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
All Aluminum Coil
Improved Reliability and Quality
Factory TXV Installed for Quicker Install
More Efficient Refrigerant Metering

Equipment
AWST Ducted Wall Mounted Air Handler, Multi-Speed Motor, 2.5 Ton, 24 in Cabinet with TXV Expansion,
Indoor
Wall-Mount Air Handler 1½ to 3 Tons
